    Lightweight COFDM UAV HD Video Transmitter with AES Encryption

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT1W
    Price : >=1 Sets $3150
    Payment Terms : T/T
    Supply Ability : Quantity(Sets) 1 - 100000 >100000
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    Lightweight COFDM UAV HD Video Transmitter with AES Encryption

    Product Description

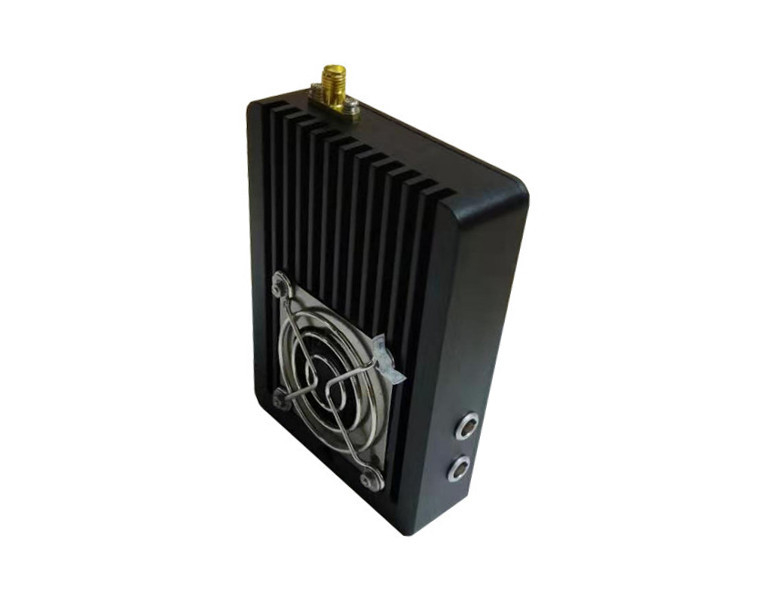

    DS-HDT1W is a micro new customized HD COFDM video transmitter,specially designed for UAV,UGV and body-worn use .It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. KP-HDT1W transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for one-way data control.


    The increased compression and efficiency of the H.264/H.265 encoder offers users additional range with the added benefit of small size,low latency and low power consumption.In particular,COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.


    Transmitter parameter:


    Frequency300-900Mhz or other frequency customized
    ModulationCOFDM
    Consumption<40W
    EncryptionAES 128 bits
    ConstellationQPSK(4QAM),16QAM,64QAM
    FEC1/2 2/3 3/4 5/6 7/8
    Guard Interval1/32 1/16 1/8 1/4
    Carrier2K,8K
    Bandwidth2/3/4/6/7/8MHz (option)
    Transfer rate6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
    RF power1 watt
    Video inputHDMI
    Video codingMPEG-4/H.264
    Video resolution1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
    Working voltageDC12V
    Working Temperature-20℃ -- +55℃
    Dimension72*98*32mm
    Weight190g without battery; 250g with battery
    Box colourBlack
    Antenna portN type
